FM 13.09 Stage 5 4WD

Grillo rajder bez sakupljača trave

FM 13.09 4WD



FM 13.09 Stage 5 4WD - 4.338.000,00

FM 13.09 Stage 5 4WD sa kabinom- 5.182.800,00



FM 13.09 4WD
FM 13.09 4WD
 FM 13.09 4WD FM 13.09 4WD FM 13.09 4WD

130 cm MP cutting deck

9M4411
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M4411
weight: 148 kg
  • Hydraulic cutting height adjustment
  • Rear discharge and mulching
  • Hydraulic operated Quick Shft lever

Cutting deck LMP 160 cm

9M4511
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M4511
weight: 170 kg

Three functions:

  • side discharge
  • mulching
  • rear discharge

All purpose flail 160 cm

9G5122
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5711
weight: 240 kg

9G7122
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G7122
weight: 9 kg

Blades scarifier Kit

9G5822
to be applied on FD 13.09 Stage5 4WD - FD 2200 Stage5 4WD - FD 2200TS Stage5 4WD - FM 13.09 Stage5 4WD - FM 2200 Stage5 4WD
item no.: 9G5822
weight: 4.5 kg

to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9G6811
weight: 240 kg

Snow chains for 23x10.50-12 wheels (pair)

9M3622
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9M3622
weight: 2 kg

Front blade 150 cm with rubber end

9G5222
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9G5222
weight: 135 kg

The orientable front blade allows to rapidly free pathways from snow and ice; it's useful for removing stone piles or sand heaps.
All blade movements are hydraulically controlled; the blade can be lifted up and inclined laterally of + / - 30°.
The rubber end helps avoiding damages on stone pavings and streets.
Hydraulic kit is needed with this implement.

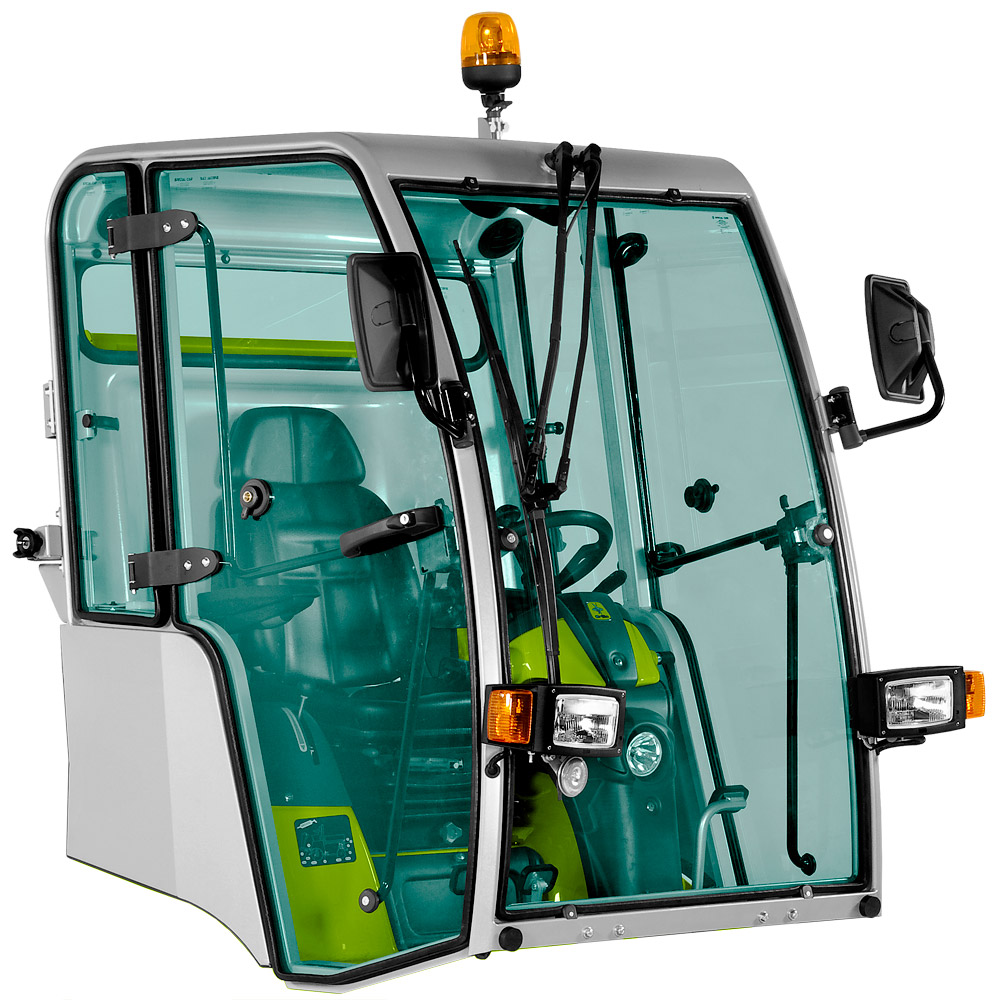

Comfort cabin with heating

Comfort cabin with heating
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 948912
weight: 190 kg

The comfort cabin is equipped with an anti-condensation heating system and ensures a great visibility on the area to be cut.
The equipment includes windscreen wipers, windows as well as internal and external safety closing.

Rear stabiliser weight

9A9411
to be applied on FD 13.09 Stage5 4WD - FM 13.09 Stage5 4WD
item no.: 9A9411
weight: 34 kg











xxx Motor
Yanmar 3TNV82A Stage5
Elektro-starter sa baterijom 12 V
Zapremina 1331 cc, 3 cilindra, dizel
Snaga motora 26 HP (18.9 kW)
Vazdušno hlađenje
Papirni filter sapromenljivim ketridžima, sigurnosni filter i predfilter
Kapacitet rezervoara goriva 23 L
  Kapacitet hidrauličnog ulja 20 L
Trakcija Hidraulični, pogon na sva 4 točka (stalni pogon čak i sa uskim radijusom okretanja)
Menjač Hidrostatik prenos sa 4 hidro motora na točkovima
Kvačilo elektromagnetno za PTO sa magnetnom kočnicom za nož
aa Kosište Sa zadnjim i bočnim izbacivanjem / mulch
Konfiguracija kosišta 3 rotirajuća noža
Širina otkosa 1600 mm
Visina košenja Od 20 do 100 mm
  Tovarni prostor Šasija sa naginjanjem, ručno prevrtanje gasnim oprugama. Bočne aluminijumske stranice, čelični pod. Zadnja stranica se otvara.
aa Točkovi prednji 23x10.50-12 TURF WHEELS
točkovi zadnji 18x8.50-8 TURF WHEELS
aaa Blokada diferencijala Automatsko zaključavanje i manuelno preko dugmeta
Brzina Kontinuirano promenljiva napred od 0 to 15 km/h
Radijus okretanja 31 cm
Upravljački sistem Upravljanje volanom, hidraulični prenos
Parking kočnica Disk kočnice
Sedište Sedište podesivo pomoću poluge
aaa Kapacitet košenja po satu 8000 m^2/h
  Standardna oprema Kuka za vuču i rol bar
aa Dužina 2680 mm

Širina		 1190 mm
  Visina 1460 mm sa spuštenim rol barom, 1940 mm sa podignutim
aa
Težina 450 kg
